Activity 3-4
[IL, TL, CA, Num, B]

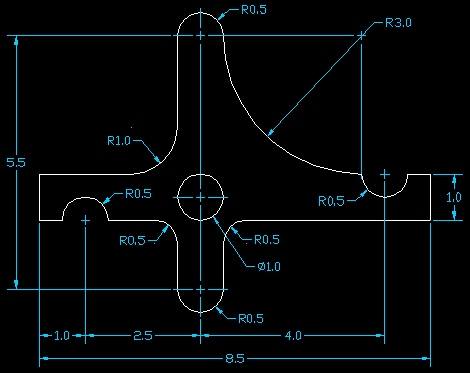

Create the following drawing and a layout using the dimensions provided.

Units - Decimal, inches
Layout Scale - 1:1

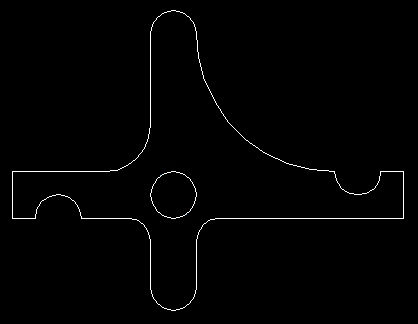

Finished Drawing

Save the drawing as "gc4" (geometric construction) inside your Unit3 folder.

Last Updated June 7/2001
