Activity 3-5
[IL, TL, CA,
NUM, B]

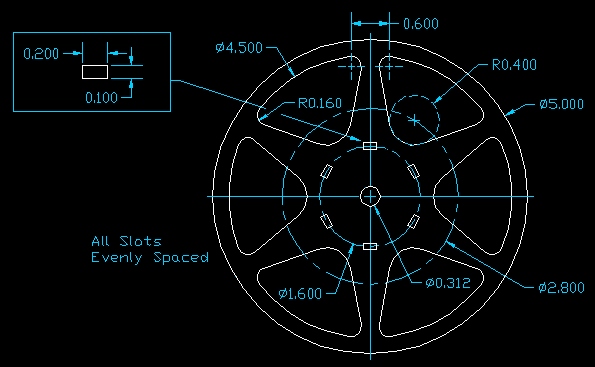

Create the following drawing and a layout using the dimensions provided.
Hints
Indicated below are a few hints to help you construct this drawing.

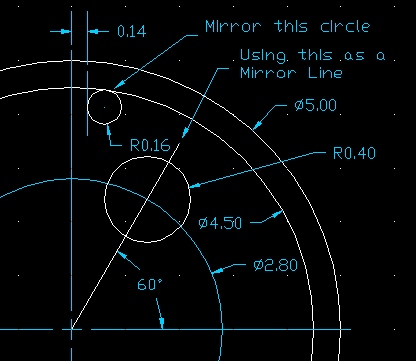

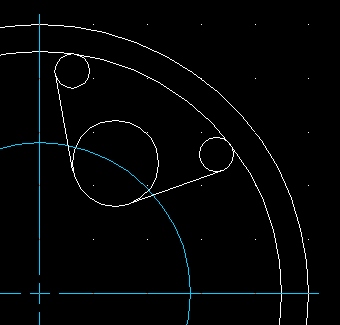

Connect the circles with lines (snap to tangent).

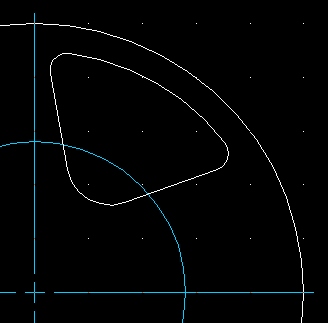

Trim away unnecessary lines.
Then use the polar array tool to array the object 6 times around the center.
Units - Decimal, inches
Layout Scale - 1:1

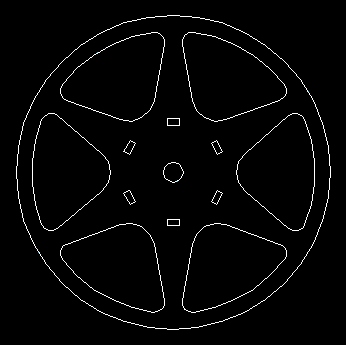

Finished Drawing
Save the drawing as "gc5" (geometric construction) inside your Unit3 folder.
