Activity 3-6
[IL, TL, CA,
NUM, B]

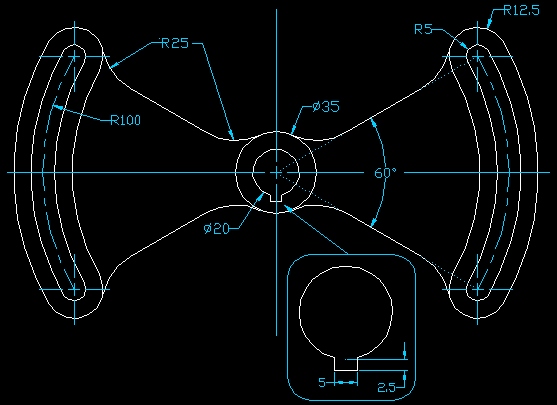

Create the following drawing and a layout using the dimensions provided.
Hints

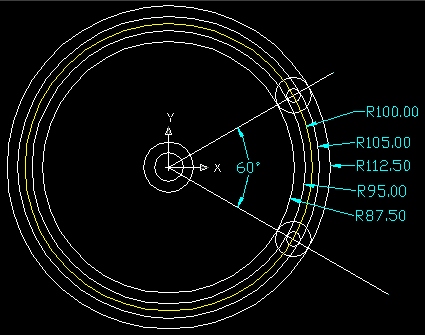

Draw the circles...
then trim...
then draw the following circles (R 25)
using the tan-tan-radius method

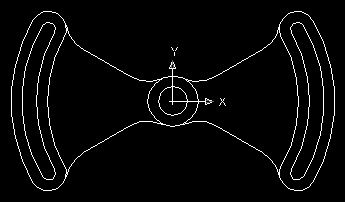

trim the circles to form the desired fillets
then mirror the right side of the drawing to the left side
and then finish the drawing
Units - Decimal, millimeters
Layout Scale - 1:1

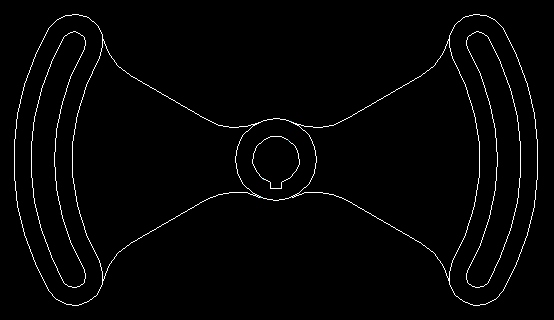

Finished Drawing
Save the drawing as "gc6" (geometric construction) inside your Unit3 folder.
