Activity 6 - 3
[CF, CA, TL, COM]

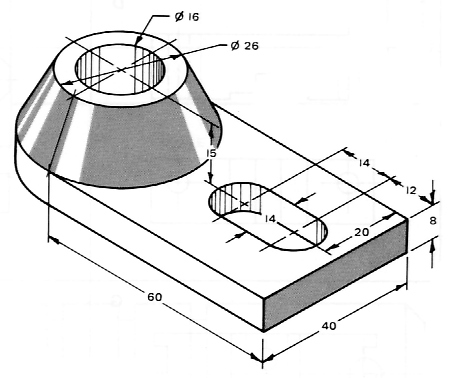

Create an orthographic projection of the following object (as many views as is necessary). When completed, dimension the object (as per the guidelines discussed within the unit).

In addition, create a layout with title block. You determine an appropriate scale (of the layout) to fit the orthographic views and their respective dimensions onto an 8.5 x 11 sheet.

Units: mm

Save the drawing as "dim3"  inside your Unit6 folder.

Last Updated June 6/2001
