Create a top, front (full-section) and right (full-section) view of the following object. When completed, dimension the object. In addition, create a layout with title block. You determine an appropriate scale (of the layout) to fit the views and their respective dimensions onto an 8.5 x 11 sheet.

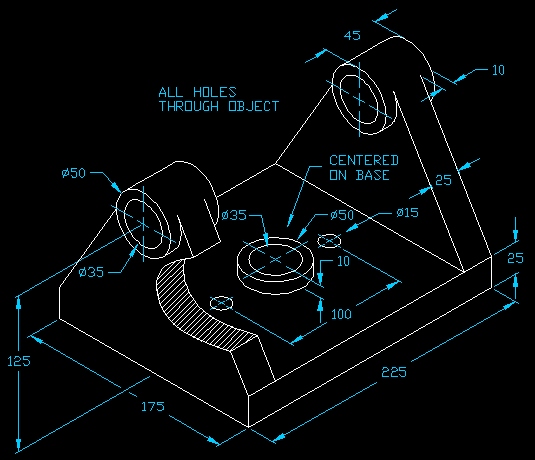

All the dimensions needed to construct the drawing are indicated below.
Units: mm
You sold have a separate layer for each of object, hidden, section, and dimension.

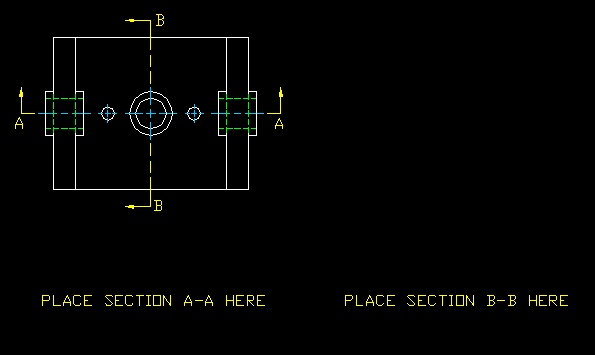

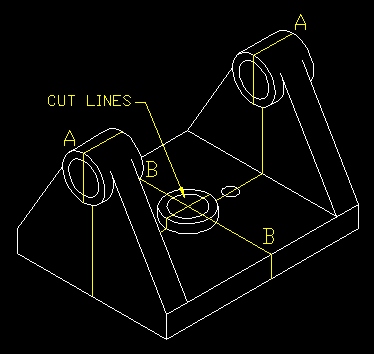

Indicated below is the top view. Place your sections in the indicated locations. Because this drawing contains more than one section, you must label your sectional views. Do not forget to dimension the drawing completely.
For guidance, you may wish to review the sample indicated earlier on in this unit.
Save the drawing as "section2" inside your Unit7 folder.
