Activity 7 - 3

Activity 7 - 3
[CF, CA, TL, COM]

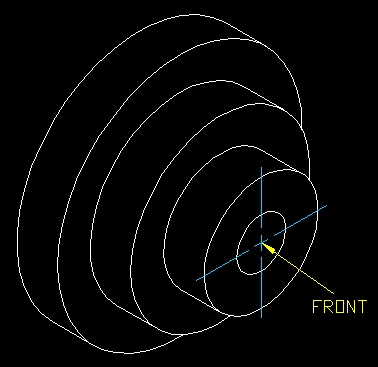

Create a front and right or left (half-section) view of the following object. When completed, dimension the object. In addition, create a layout with title block. You determine an appropriate scale (of the layout) to fit the views and their respective dimensions onto an 8.5 x 11 sheet.

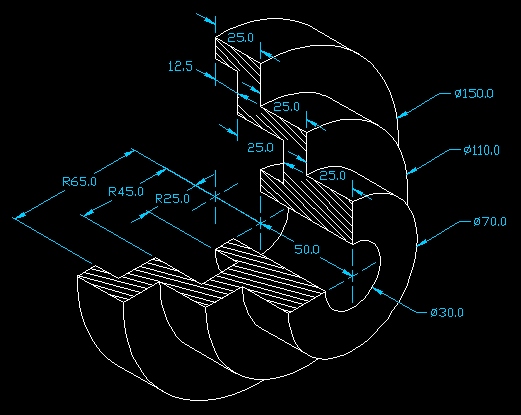

All the dimensions needed to construct the drawing are indicated below.

Units: mm

Save the drawing as "section3" inside your Unit7 folder.


Last Updated June 6/2001
