Activity 2-5
[CA, CF, B, N, CCT, TL , IL]
Drawing
This activity will provide you with the opportunity to practice using several of the drawing tools discussed. You will be required to produce 1 drawing file.
Start AutoCAD 2000 LT and create a new file with the indicated drafting settings.

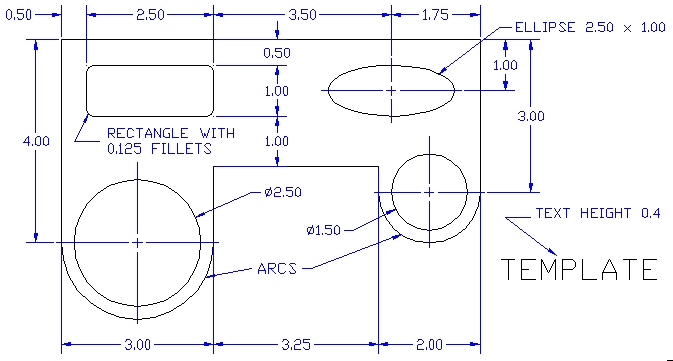

The location of each object is indicated below. Do not draw any dimension lines. The placement of each object must be precise. You can place the text object ("TEMPLATE") in a location convenient for you. I suggest setting your snap and grid settings to 0.25 to begin with. You will need to perform some mental math (using the coordinate system) in determining the location of each object.

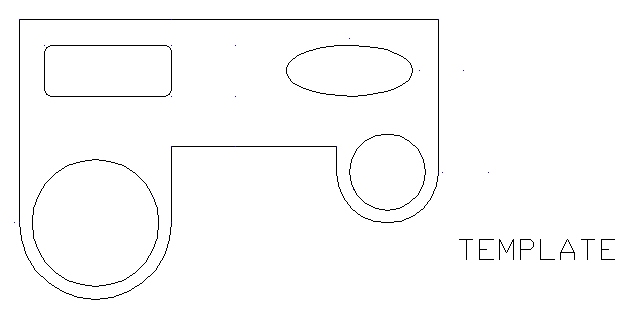

Finished Drawing
Save as "draw" inside your Unit2 folder.
