Activity 3-3
[IL, TL, CA, NUM, B]

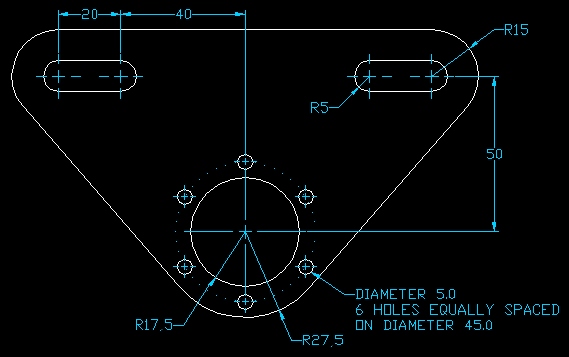

Create the following drawing and a layout using the dimensions provided.
When you start this drawing use the Start from Scratch option (instead of Quick Setup) and select Metric. This will default the drafting settings to metric values.
Units - Decimal, millimeters
Layout Scale - 1:1

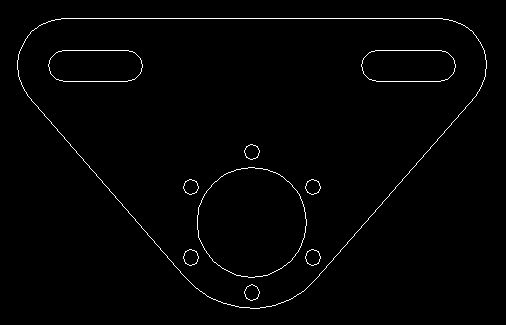

Finished Drawing
Save the drawing as "gc3" (geometric construction) inside your Unit3 folder.
