Activity 5 - 2
[IL, CA, B]

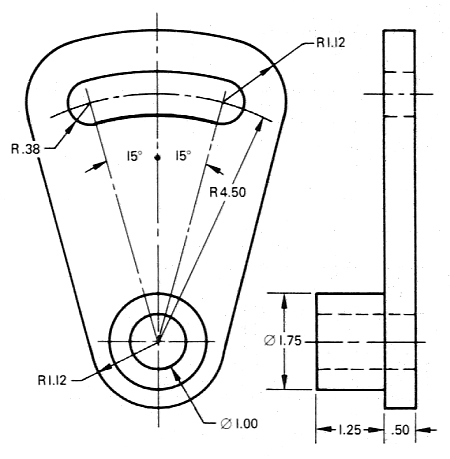

Create a Cavalier Oblique drawing of the following object. In addition, create a layout (using an appropriate scale) and title block.

It is your choice as to which direction (top-left, top-right, bottom-left, or bottom-right) and receding angle (30, 45, or 60 degrees) you use for your projection.

Units: inches

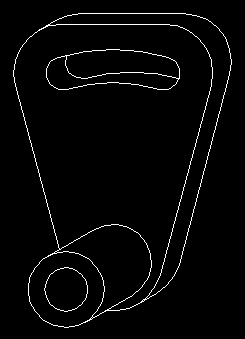

Sample - Top-Right @ 30 degrees

Save the drawing as "pd2" (pictorial drawing) inside your Unit5 folder.

Last Updated June 6/2001
