Activity 5 - 4
[IL, B, CA]

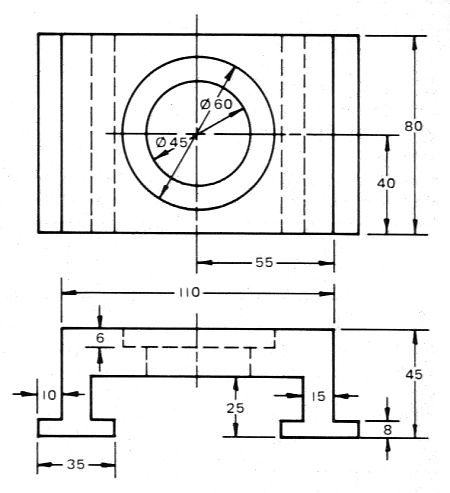

Create an Isometric drawing of the following object. In addition, create a layout (using an appropriate scale) and title block. When the drawing is done, you do not need to scale the isometric drawing down to 80%.

Units: mm

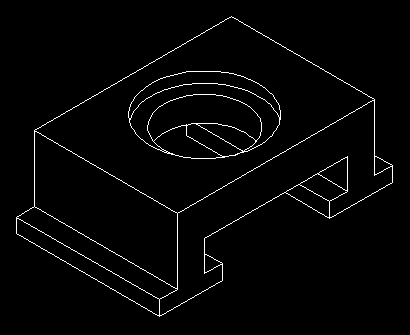

Sample

Save the drawing as "pd4" (pictorial drawing) inside your Unit5 folder.

Last Updated June 6/2001
