Units: inches

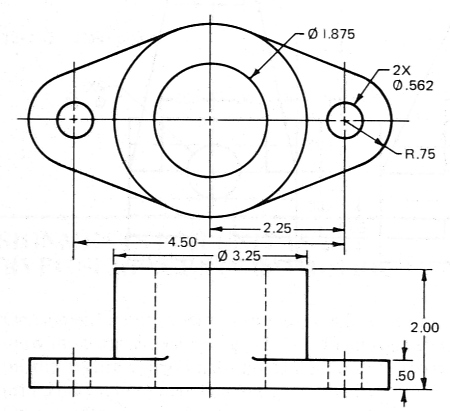

Re-create the following orthographic drawing (2 views) and then create a pictorial drawing to the right or left of the orthographic views. Be sure your orthographic views are complete (all object and hidden lines present). You do not need to dimension anything. The pictorial drawing can be an oblique (cabinet or cavalier) or an isometric. If the pictorial is an isometric, remember to scale it down to 80%.
In addition, create a layout (using an appropriate scale) and title block.
Units: inches
If you are building an isometric view, you will need to use the technique discussed in the Connecting Isometric Circles section within this unit for portions of the drawing.

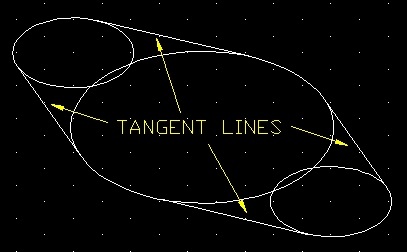

isocircles connected using tangent lines
Save the drawing as "pd5" (pictorial drawing) inside your Unit5 folder.
